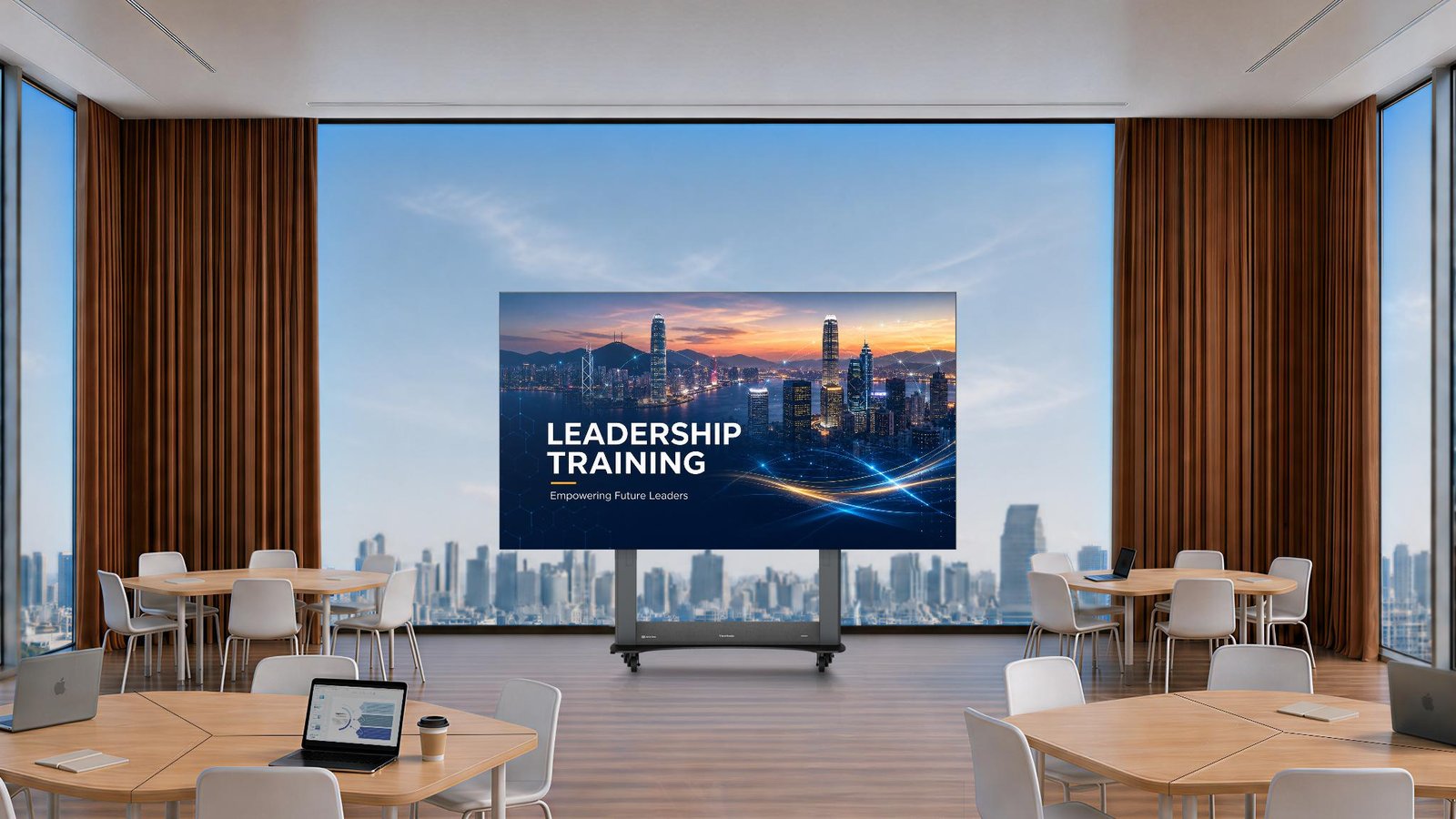

ViewSonic LDS136-152 — a new 136-inch mobile Direct View LED display that combines the format of a large video wall with a design designed for rapid deployment. The fourth generation of the LDS series has already gone on sale, and the screen itself can be moved between rooms on wheels and installed without complicated installation.
Unlike traditional stationary LEDs– video screen, The LDS136-152 comes pre-assembled. The structure is folded, transported in a protective case and can be installed in about 10 minutes without wall mounting.
136 inches, 600 nits and a frequency of 3840 Hz
ViewSonic LDS136-152 received seamless 136-inch Direct View LED screen with resolution Full HD — 1920×1080 pixels. The main characteristics of the display:
- diagonal — 136 inches;
- resolution — 1920×1080;
- brightness – up to 600 nits;
- update frequency of the LED system — 3840 Hz;
- contrast — 6500:1;
- viewing angle — up to 170° horizontally and vertically;
- pixel pitch — 1.56 mm;
- the declared LED resource is up to 100,000 hours;
- two 30 W speakers.
The screen is designed for work with large audiences, where good visibility of content from different places in the room is important.
A motorized stand raises the screen by more than a meter
One of the main changes of the fourth generation is a new motorized rack. It provides an additional vertical movement of approx 1.15 m. This allows you to adjust the height of the screen for a specific room and audience. You can control the position of the rack and the basic settings of the display using one remote control. The rear ports have also been made more accessible. There is no need to open panels or access internal components to connect external devices.
The screen can be transported between rooms
The LDS136-152 is mounted on 360-degree swivel wheels. The folding design reduces dimensions during transportation, and the manufacturer claims that the display can be transported through most standard elevators. The set includes a protective transport case. This allows one system to be used in different venues — for example, in conference rooms, auditoriums, exhibition spaces, hotel lobbies or during temporary events.
GOB, IP65 and IK06 for public spaces
LED panels use technology Glue-on-Board (GOB)which should increase the resistance of the surface to everyday wear and tear. For LDS136-152 the ratings are stated IP65 and IK06. They mean protection from dust and moisture, as well as resistance to mechanical influences in environments with intensive use. ViewSonic has also redesigned the hinge mechanism so that the design can better withstand regular folding, shipping and re-installation.
Connectivity and wireless streaming
The LDS136-152 isn’t just for single-source video playback. The display supports several modes of simultaneous display of content. Available options include:
- four HDMI inputs;
- HDMI output;
- USB;
- Ethernet;
- Wi-Fi;
- Bluetooth;
- RS-232;
- SPDIF;
- 3.5 mm audio output;
- OPS slot for system expansion.
are supported split-screen, Picture-by-Picture up to four sources and Picture-in-Picture in real time. ViewSonic AirSync with AirPlay and Google Cast support is used for wireless streaming. The system can also integrate into the ecosystem Q-SYS through the verified Q-SYS LIBRARY VERIFIED plug-in and work with Crestron, Extron and AMX systems.
Who is the ViewSonic LDS136-152 intended for?
The LDS136-152 is primarily intended for professional use. It can be used in offices, educational institutions, conference halls, hotels, exhibition pavilions and other large premises. The main advantage of this format is the absence of the need to create a permanent LED installation. The screen can be unfolded for a specific event, then folded and moved to another room. This is especially true for buildings where permanent installation of a large video wall may be difficult or undesirable due to architectural constraints.
ViewSonic LDS136-152 is already shippinghowever producer did not specify in the suggested retail price.
